Building the background, pt.3
February 24th, 2024
Contents
- Recap
- Performance
- React Server Components
- Webpack and the bundle
- React Suspense and gradual loading
- Rendering Performance
- Conclusion
Recap
Last time, we dug into randomness and accessibility. (Need to catch up? Check out the previous post).
Performance
This time, we're digging into web performance. Let's break down how it went:
React Server Components
This site, along with many others, is a Next.js + React webpage, built and served via AWS Amplify. Most of the site is statically generated, but some sections of the site utilize React Server Components. Server components fall under the isomorphism umbrella. They make web site more complicated, but they also make them faster. For instance, a server doesn't have access to certain client side APIs, while the client has limited access to protected server resources.
Luckily, Next.js takes most of the guess work out of isomorphic rendering with their latest updates. So, we're using that for page speed increases.
The blog pages are all RSC. They're all fast. But if we're discussing the background, why am I mentioning the blog? The blog has nothing to do with the background! But it could.
Webpack and the bundle
When we talk about frontend performance, the clearest culprit for slow performance is often the easiest to solve: the size of the webpack bundle. In older versions of React + Webpack (or Turbo, or whatever you use), code that wasn't rendered on the server was loaded into one big file--called the bundle. Bundles got big without proper pruning.
Webpack introduced [code splitting(https://webpack.js.org/guides/code-splitting/), and React introduced lazy components. Used together, these two technologies make it easy to control how and when a bundle is split and loaded. Instead of loading all of the pages with the bundle (like loading the blog with the home page), we only load the code we need for a given page.

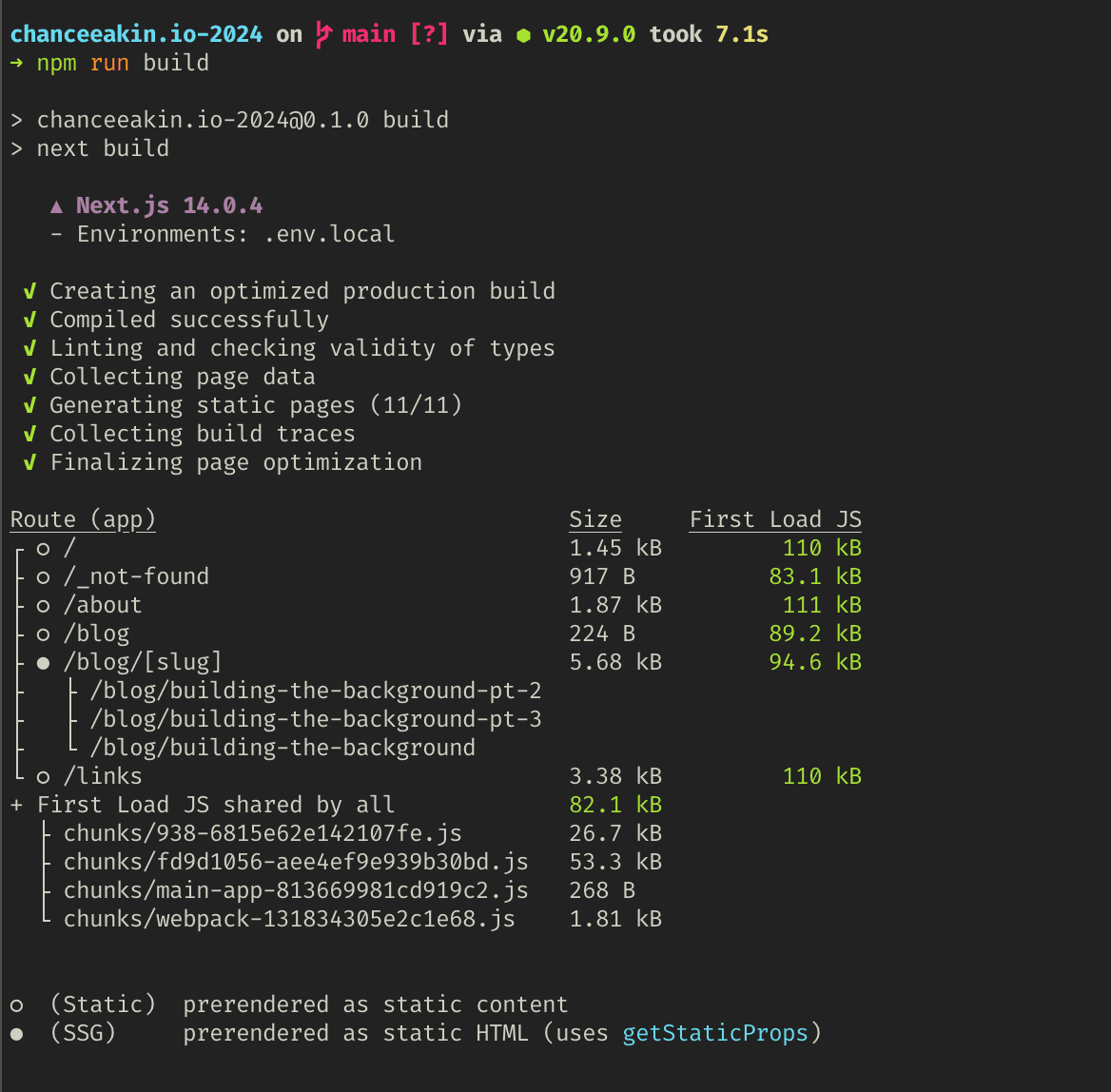

Next.js makes code splitting a breeze. They split the bundle at every page, so we gain common performance benefits with almost no effort. Here's what my bundle looks like:
The first load for the / is 110kb. The largest TCP packet size is 64kb. The
first paint ships in 2 TCP packets. That's not too bad. Prior to code splitting,
some webpages would load 4+ mb of data and chuck up a loading spinner until it
was finished. Websites with that configuration load slow. Very slow.
If I did nothing else, this solves most of my perceived page speed issues. But we're not done.
React Suspense and gradual loading
We also need to load a 3D animation, parallax animations, and the content of the webpage.
Suspense to the rescue
Suspense allows us to ship fallbacks, or loading/initial states for our components. In my case, I ship a barebones title and a little bit of css attached to it. This loads in around 380ms on desktop, and fills in while I download the big ol' three.js bundle.
LCP and Three.js
Because I'm utilizing React Suspense, my largest contentful paint doesn't occur until my three.js bundle is completely loaded. In a nutshell, I'm judged on the complete load for SEO purposes, even though my FCP (first contentful paint) occurs in half the time. Kind of a bummer, but at least my users get some level of feedback. And hey, I want a cool background on my site, so here we are.
My Largest Contentful Paint (LCP) occurs around 500ms on desktop, and full load on 780ms. All in all, pretty solid for loading 5000 particles and animating them via WebGL @ 60 frames per second.
Rendering Performance
The page loads in two main chunks:
- My code (Next.js + content)
- Three.js code

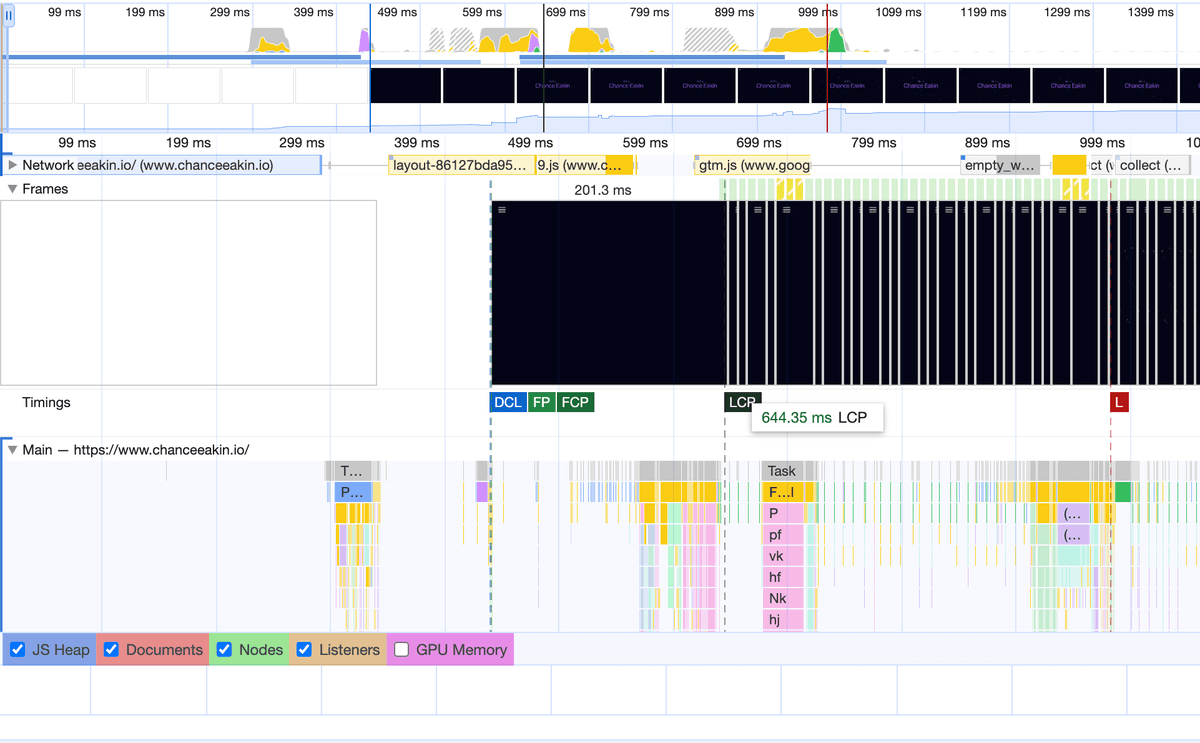

In the above image, there are two main scripts being called: the Next.js code (+ my tiny additions), and the Three.js code. The FCP occurs around the time the Three.js code processes, and the LCP occurs when the Three.js code processes. The last bit is the Google Tag Manager, a non blocking script for page performance. This screen cap shows the page taking 650ms for Largest Contentful Paint of the background + page content.
Conclusion
All in all, the site does quite a bit of work for a subtle effect. I like it, and I hope you do too.
Next time, we'll cover something a bit different! Stay tuned.
